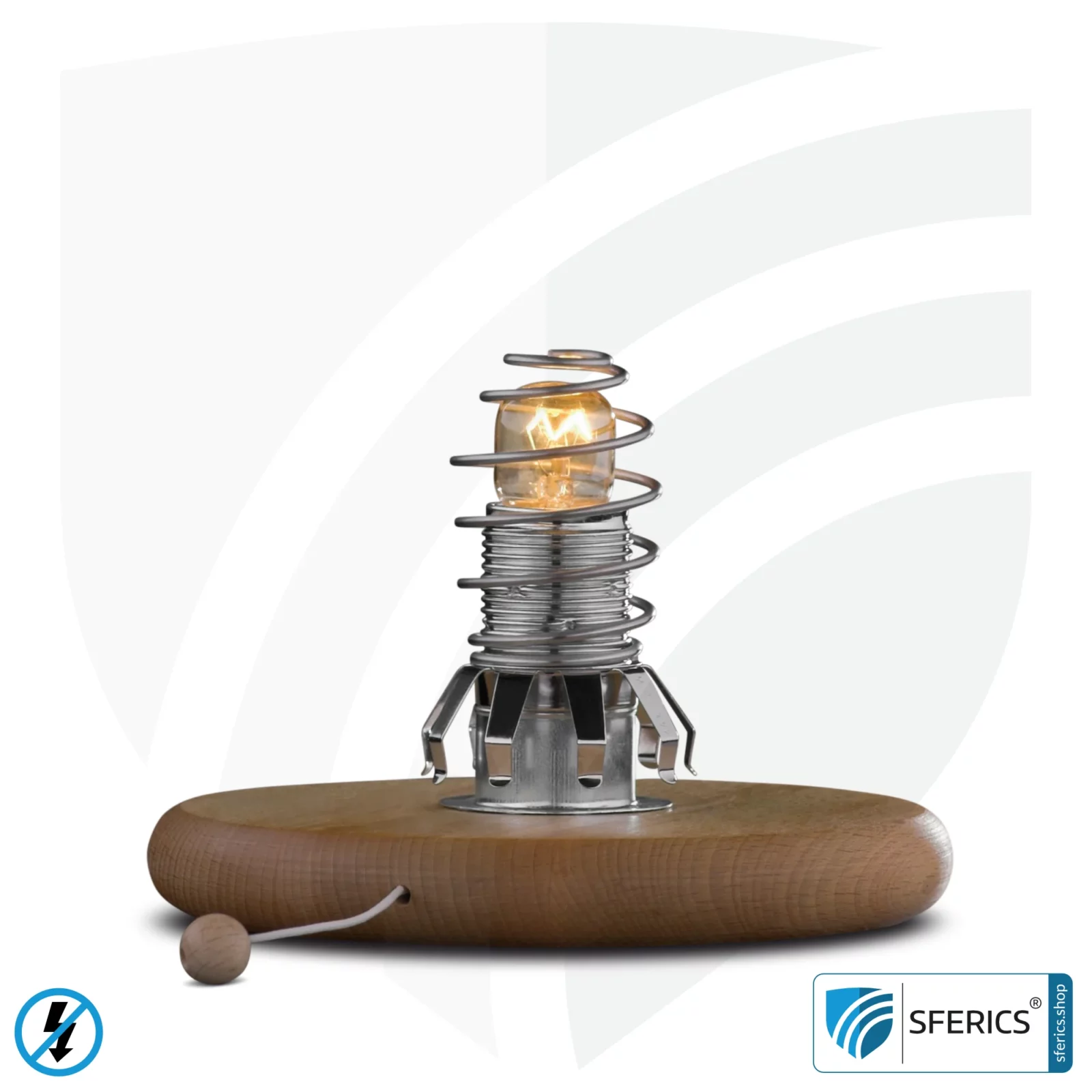

Shielded lamp base | For retrofitting e.g. salt crystal lamps and suitable lampshades | E14 socket. 15 Watt.
€ 79,00 (€ 66,39 excl. VAT)
The shielded lamp base is ideal for retrofitting existing luminaires such as salt crystal lamps or alternative lampshades to suit the size.
Each lamp base is unique. The reason for this is the beech wood – each turned lamp base differs in colour and grain. Ideal for the living area.
Delivery time: approx. 3-5 working days
Shielded lamp base for retrofitting e.g. salt crystal lamps. Also ideal as a base for self-designed lampshades. Ideal with LED light source for socket E14.
This shielded lamp base is intended for retrofitting existing salt crystal lamps and for further processing and can be combined with a compatible lamp shade that is larger in size. Especially for alternative lampshades the waste heat of the used light source has to be considered, therefore we recommend to use LED light sources with E14 lampholder without exception.
- Table lamp for the reduction of low-frequency electric and magnetic alternating fields
- Ideal for retrofitting salt crystal lamps
- Protection class 1 (with protective conductor) acc. to DIN/VDE
Disclaimer: For combinations with alternative lampshades we can neither guarantee nor assume liability. It is essential that you have the finished lamp checked by an electrician before putting it into operation.
Salt crystal lamps and suitable bulbs
For the salt crystal lamp we recommend a lamp with E14 socket with a maximum of 15 watts. It is also possible to use a halogen lamp with a G9 socket. In this case the adapter G9 to E14 is necessary. A further detail is the high electric alternating field of commercially available salt crystal lamps.
An unshielded salt crystal lamp (protection class 2) with a 2-pole mains connection cable and connected Euro plug (EN 50075) results in an alternating electric field of approx. 100 – 160 V/m. This field creates a range of up to 2 metres. In terms of building biology, such emissions should be avoided with a salt crystal lamp in particular. Our shielded lamp base (protection class 1) with 3-pole shielded mains connection cable, a metallic housing and the protective basket for the lamp results in an alternating electrical field of approx. 0.4-0.6 V/m (measured under laboratory conditions).
In practice, small environmental deviations must be taken into account. In the area of the socket outlet (earthed plug), the strength of the alternating electric field is influenced by the electrical installation. The shieldingShielding is the protection from the effects of external fault zones and environmental influences (on a person's health most of the time). More is checked in accordance with the specifications, frequencyFrequency is the number of occurrences of a repeating event per unit of time. It is a physical measurement that is important for describing periodic processes, such as vibrations. More bands and measuring distances of the recognised screen standards (for low-radiation screens / monitors): TCO’99, Band I (MPR II) and DIN EN 50279 (measuring distance 30 cm).
This shielded lamp base can be used in the following countries:
CEE-7/4 (German System) and CEE-7/7 (French System): Afghanistan, Algeria, Andorra, Belgium, Bosnia-Herzegovina, Bulgaria, Croatia, Czech Republic, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Indonesia, Italy, Korea, Latvia, Lithuania, Luxembourg, Morocco, Macedonia, Monaco, Montenegro, Moldova, Netherlands, Norway, Poland, Portugal, Romania, Russia, Serbia, Slovakia, Slovenia, South Korea, Spain, Sweden, Tunisia, Turkey, Ukraine, Yugoslavia, Iceland.
Ideal accessory for this shielded lamp base
Connecting cable
(1)
from: € 33,70
This product has multiple variants. The options may be chosen on the product page
E14
Out of stock
€ 251,00 (€ 210,92 excl. VAT)
| Weight | 0,2 kg |
|---|---|
| Dimensions | 15 × 15 × 15 cm |
| Scope of delivery | stainless steel spring spiral, luminaire, Illuminant, description |
| Brand | |
| Country of origin | Germany |
| TECHNICAL DETAILS | SHIELDED LAMP BASES FOR RETROFITTING |
| Colour | beech |
| Cable colour | white |
| Composition | beech wood oiled, felt base |
| Operating voltage | 230 VAC / 50Hz |
| Testing basis | TCO’99 (MPR II, DIN prEN 50279) EN 60 320 / 2.2, CE, F (individually 100%) Limit values undershot by factor 20 and more in all measurement procedures] |
| ShieldingShielding is the protection from the effects of external fault zones and environmental influences (on a person's health most of the time). More attenuation max. in dB | > 99% (earth-dependent) |
| Processing quality | High quality and natural looking table and night table lamp. The luminaire is particularly suitable for short reading or bedside lighting in all bedrooms and rest rooms. |
| Diameter foot | 150mm |
| Cable | three-pole shielded connection cable – flexible |
| Cable length | approx. 180cm |
| Bulbs | 1 x E14 – max. 15 wattThe watt (W) is the unit of power that it used to determine output. More |
| Switch | Pull switch with wooden pull element (ball), shielded |
| Shielding | Patented stainless steel shield spiral (shield basket), shielded mains cable (aluminium shield, two wires) |
| Alternating magnetic field shielding | Reduction of the alternating magnetic field by twisting the individual wires Number of strokes 15 (15 times per meter twisted against each other) |
| Protection class | 1 (with protective conductor yellow/green) |
| Right-angle plug | Moulded, CEE standard 7/VII, DIN 49441 |
| Scope of application | Sleeping area (bedside table), children’s room, living area |
| Important information | Shielded luminaires can be used directly without electrical training and without an electrician. ATTENTION: When changing the lamp, make sure that it is still hot and could cause burns. Furthermore, when inserting the bulb into the base, avoid direct contact with the skin in order to avoid greasy spots and thus extend the service life of the bulb. |
| Weight | approx. 200g |
| Warranty | The guarantee is with proper treatment with the usual 2 years (§434 BGB + §446 BGB) |
Suitable bulbs for this lamp:
- General bulbs with E14 socket
- All bulbs with G9 socket (due to the included adapter)
- Maximum 15 wattThe watt (W) is the unit of power that it used to determine output. More
Pay attention to healthy light when buying lamps!
Healthy light from a building biology point of view, is a light source with a
- lowest flicker – as close as possible to 0 Hz (HertzThe Hertz (Hz) is the unit used to measure frequency. Hertz gives the numbers of repeated oscillations (processes) per second. More)
- The light spectrum/colour spectrum should be as natural as possible, without the usual excessive blue light component of an LED, for example. This serves to protect the macula (prophylaxis against early macular degeneration).
- Color temperature warm white, 2700 K (Kelvin) in living areas
- Unfortunately, the classic light bulb was banned. Good alternatives are: the halogen lamp G9 or the handle to high-quality LED light.
