Antenna ANT-NA16 | external antenna for control cabinet repeater RP-NA16-KA | master switch set-up | building biology safe wireless technology according to EnOcean standard

23.90

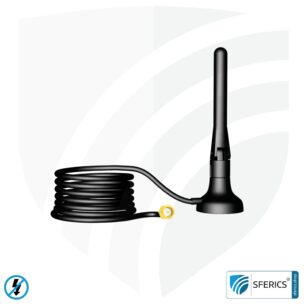

The ANT-NA16 antenna is a necessary extension for the RP-NA16-KA control cabinet repeater and is screwed directly onto the antenna connection at the repeater in the fuse box.

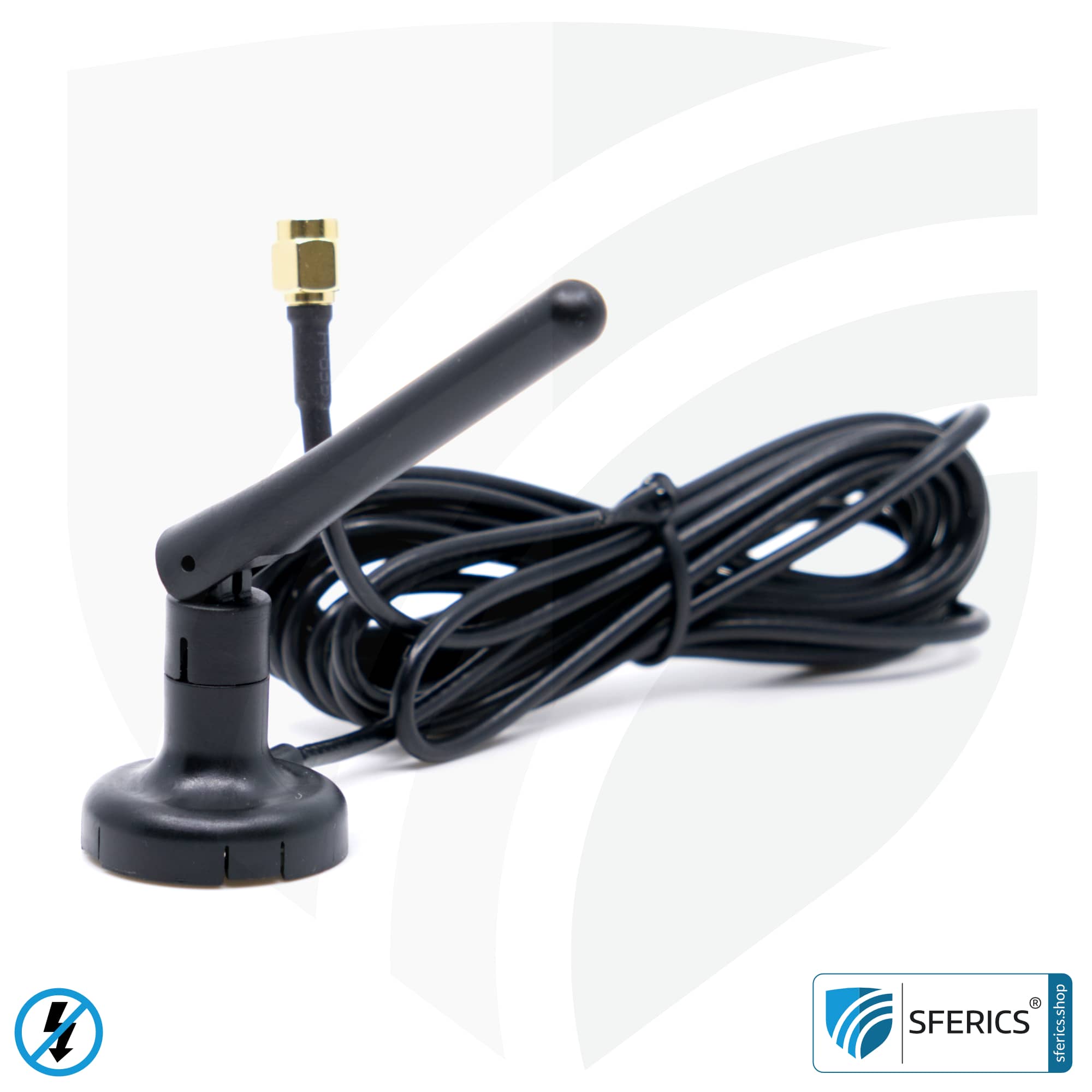

The antenna itself has a magnetic base, which makes it very easy to mount outside the control cabinet.

Master switch series

Function based on a radio signal encoded according to the EnOcean standard that is harmless to building biology and is only transmitted when the transmitter in the remote control is actuated.

Delivery time: approx. 1-3 business days

In stock (can be backordered)

PROnatur24® SHOP
store rating4.56 / 5
product rating4.69 / 5
38 reviews

MASTER SWITCH SERIES

MASTER SWITCH SERIES

Antenna ANT-NA16 | external antenna for control cabinet repeater RP-NA16-KA | master switch set-up | building biology safe wireless technology according to EnOcean standard

The ANT-NA16 antenna is required for the RP-NA16-KA control cabinet repeater to increase the range of the NA 16-1P radio demand switch. Or to improve an interfered reception.

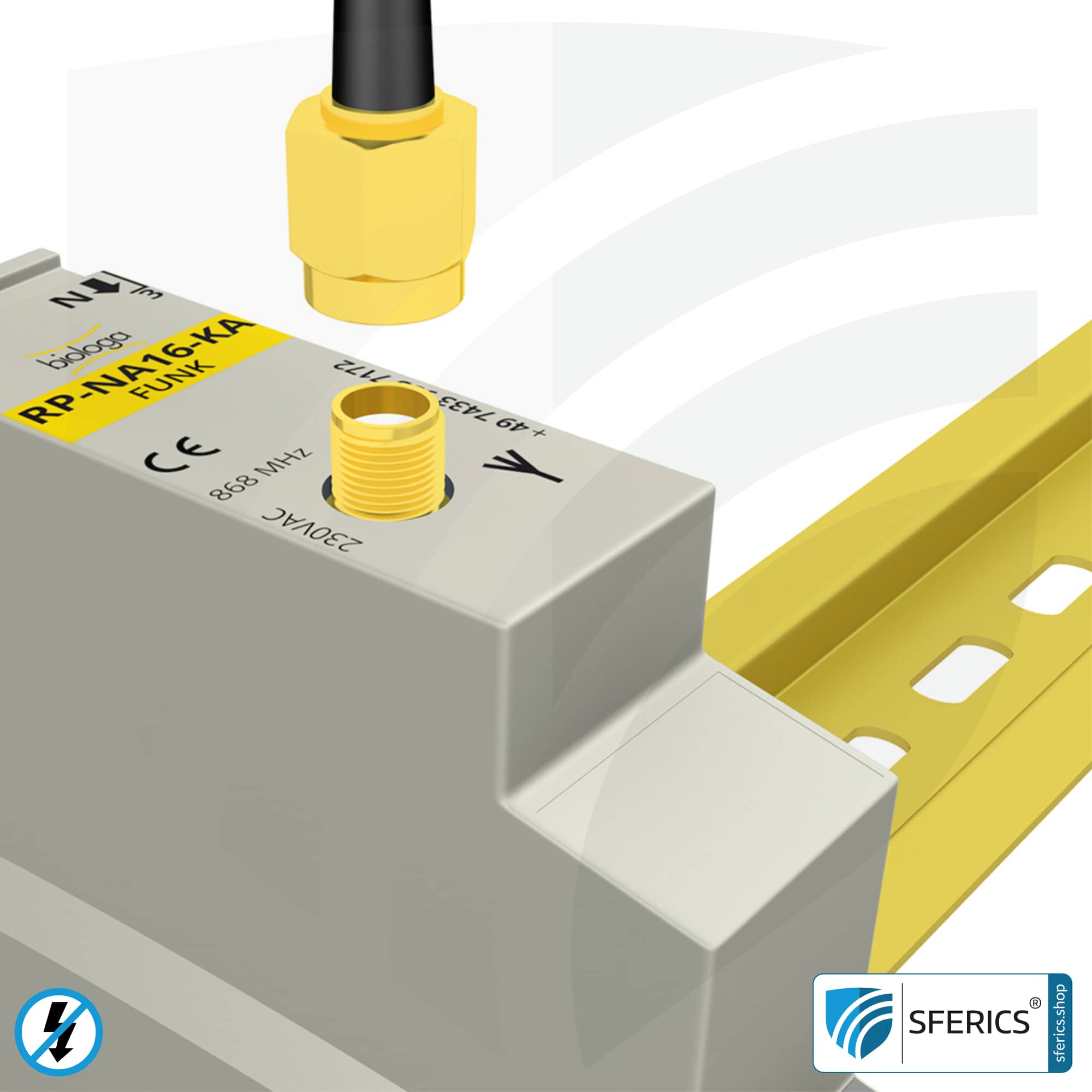

After installing the RP-NA16-KA fuse box repeater in the fuse box, the antenna cable is screwed onto the antenna socket provided. The antenna cable of 250 cm is long enough to mount the antenna outside the control cabinet.

This ensures a clean function even in shielded electrical installations. For mounting, we recommend drilling a sufficiently large hole in the closing door to pull the antenna cable through.

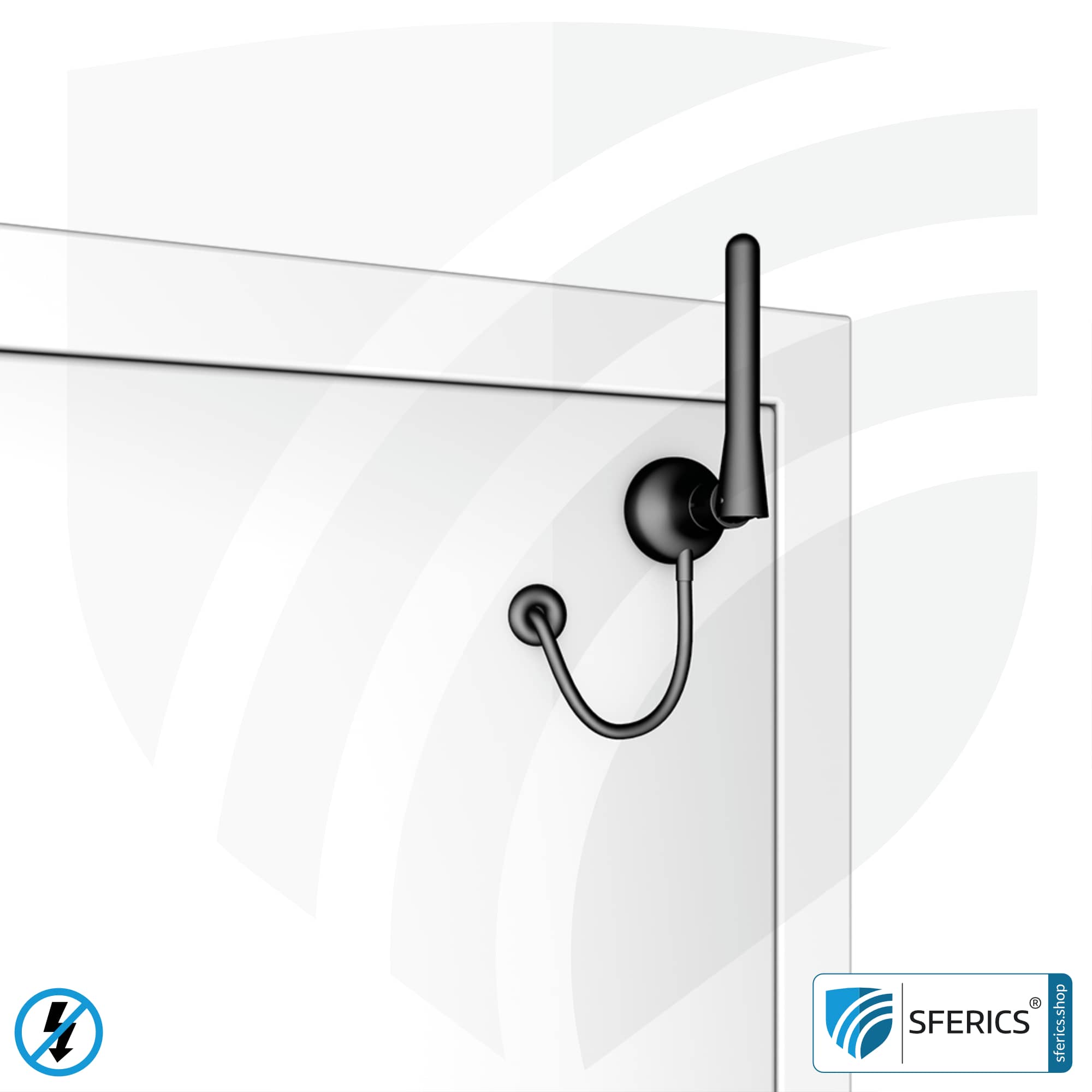

The ANT-NA16 antenna is mounted outside the box with the aid of an integrated magnetic base, which is either attached to the control cabinet door or to a screwed-on metal body disc (metal plate or similar).

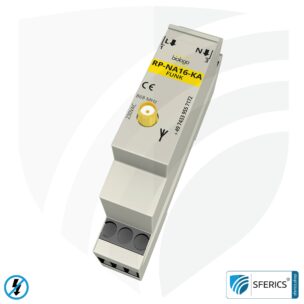

Repeater RP-NA16-KA | level 2 repeater for the fuse box | master switch set-up | building biology save wireless technology according to EnOcean standard. Feedbild.

Convincing performance of the ANT-NA16 antenna at a glance

  • Antenna for the RP-NA16-KA repeater
  • External antenna as required accessory of the repeater of the RP-NA16-KA series (switch cabinet, fuse box)
  • For extending the range with protection class 1 distributors and shielded electrical installation or disturbed reception
  • With magnetic base for easy mounting
  • 1 year warranty

Documentation for the ANT-NA16 antenna (german / .pdf)

Technical data Range overview

MASTER SWITCH SERIES

Overview of the range and parts of our master switch series

HOT
Weight 0.1 kg
Dimensions 9 × 4.5 × 8.5 cm
Scope of delivery

antenna

Colour

Brand

Country of origin

Germany

GTIN

4010312300244

.

TECHNICAL DETAILS ANTENNA ANT-NA16
Colour black
Weight 60 gram
Height 100 mm
Height angled
78 mm
Cable length 250 cm
Range >30 metres
Antenna connection SMA 1.2-1.6
Radio technology / control frequency EnOcean 868 MHz
Mounting Using magnetic base on outer door
Application Necessary accessories for the repeater of the series:
1. RP-NA16-KA
Scope of delivery 1. repeater RP-NA16-AP
2. assembly instructions
Warranty The warranty for this product when handled properly is the usual 2 years (§434 BGB + §446 BGB)
