EVOLUTION ™ Shielding is the protection from the effects of external fault zones and environmental influences (on a person's health most of the time). More fabric against HF Electrosmog is a colloquial term for all emissions from electric, magnetic, and electromagnetic fields. More caused by radio radiation (mobile radio, WIFI, DECT, …) For shielding of RF by means of a curtain or canopy. Crease-resistant, hard-wearing and easy to clean.

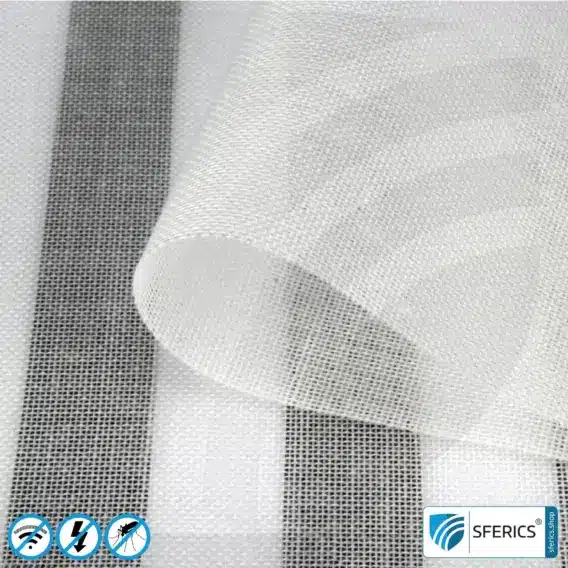

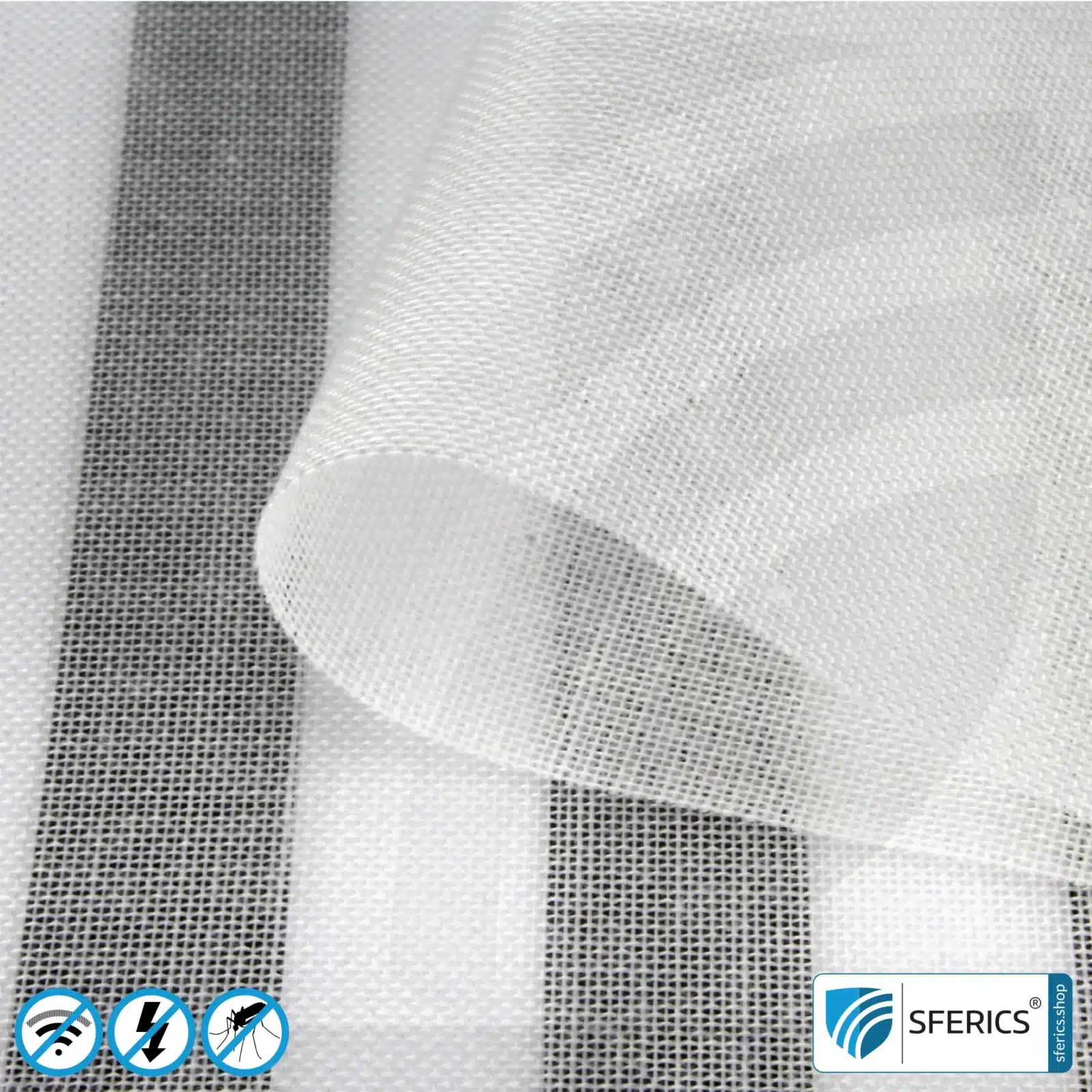

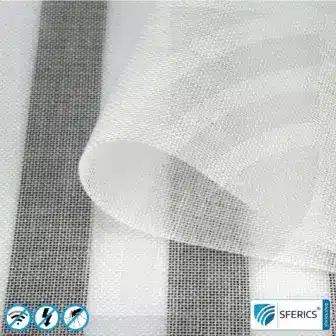

The EVOLUTION™ shielding fabric is among the most attractive shielding fabrics and, with its integrated lead tape, is perfect for curtains and canopies as well. Because the woven, radio-reflecting copper and silver threads are insulated for protection, there is no oxidation with oxygen and, as a result, the EVOLUTION shielding fabric’s color does not fade with time. The curtain or canopy equipped with the EVOLUTION™ will stay there in its natural WHITE color for years.
Trevira® is integrated into the EVOLUTION™ shielding fabric, which gives it a crease-free effect. Along with the sewn on lead tape, it is simply a great combination of appearance and effect. This shielding fabric is a half-transparent cotton wool fabric for protection from high-frequency electromagnetic fields (HF) from transmission masts and private devices such as cell phones, smartphones, WLAN routers, mobile LTE Internet, etc. It should be noted, however, that this shielding fabric cannot be earthed. EVOLUTION™ is not electrically conductive, so protection provided by reflecting invading mobile radiation is limited.

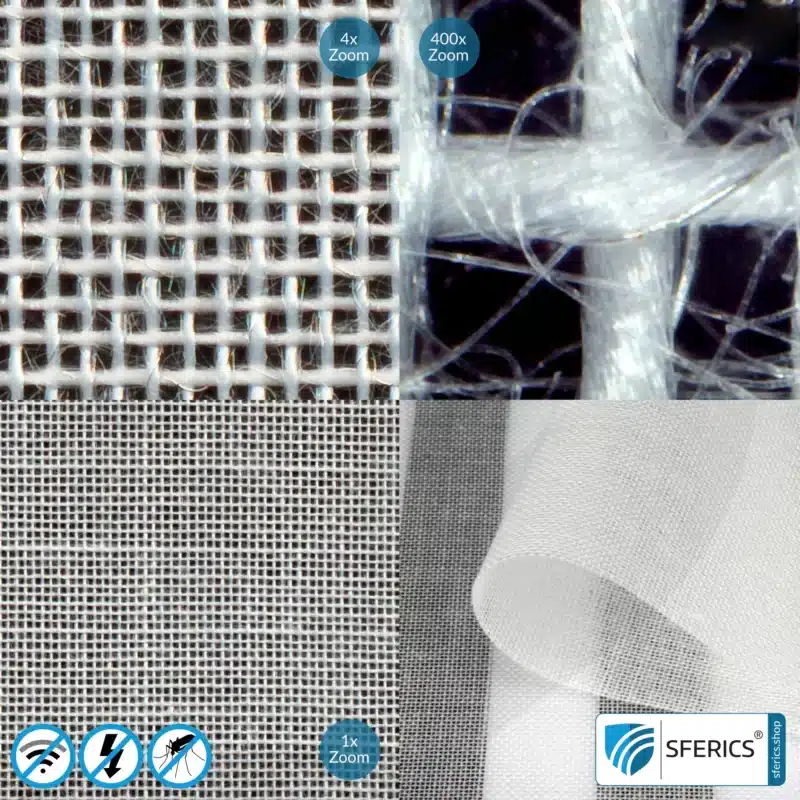

The EVOLUTION™ shielding fabric is made out of a special polyester tissue. This tissue is made out of 91% polyester (Trevira), 8.5% copper, and 0.5% silver and reaches attenuation values of up to 30 dB, even up to 43 dB with two layers.
Use and assets of the EVOLUTION ™
Ideally, the EVOLUTION™ needs to be used for curtains and canopies because of its transparency.
The convincing properties of the EVOLUTION™ shielding fabric are:
- Crease-free through Trevira®
- Textile properties: washable, can be ironed, can be sewn
- Quality grading: very high
Please note: if you also need protection from low-frequency electric fields, you will need complementary methods, such as shielding paints, to achieve this.
Shielding fabric EVOLUTION for anti EMF electrosmog canopies
With a focus on building biology in the future, we recommend that you choose our shielding fabric SILVER TULLE when you plan to use EVOLUTION as a canopy (despite the optical disadvantage). Even if EVOLUTION is still sufficient to start 5G in terms of shielding attenuation, there is a significant drop in reflective power / shielding performance already far below 10 GHz. EVOLUTION two-layered is not an option for the canopy due to insufficient air circulation, air supply and corresponding heat accumulation in summer. However, as a two-layer curtain NATURELL remains effective and visually very attractive – just like our alternative white screening fabric ULTIMA.
Caring for the EVOLUTION ™ shielding fabric
Wash gently at 30°C. Iron without steam for the first part. Do not tumble dry. Do not bleach. Do not dry clean. For allergy sufferers: every new fabric smells, wash before first use! We recommend our ecological, vegan UNI SAPON detergent.
EVOLUTION™ HF electrosmog shielding fabric technical information
- Screening attenuation: 30 dB; 43 dB with two layers. All values provided apply for 1 GHz. Measurement from 40/600 MHz to 40 GHz according to standards ASTM D4935-10 or IEEE Std 299-2006.
- Length: Running meter
- Materials: 91% polyester (Trevira), 8.5 % copper, 0.5 % silver
- Dimensional stability: +/- 1 %
- Grammage: 80 g/m²
- Grounding is an electrically conductive connection with the electric potential of the ground. More: Not electrically conductive. No protection from electric alternating fields (LF), these must be reduced through complementary methods. For this, we recommend suitable shielding paint or activation with a mains decoupler.
- Application: Curtains, windows, canopies
- Field type: HF (high-frequency electromagnetic fields)
- Ecology: Very high
|HF screening||Materials||Web width||Weight||Color||Coloring possible||Discoloration of the silver||Optical transparency||Quality grading||Washing test / screening attenuation|
|up to 30 dB||Cotton wool
+/- 2 cm
|80 g/m²||white||no||no||middle||Very high||Good|
No cancellation for FABRICS
Like for cuts, there is no right to return shielding fabric.
Please note that cancellations do not apply to these products, because they were cut to the customer’s specifications. Reselling a tailored item is no longer possible. For this reason, it is possible to request a free sample of the EVOLUTION™ shielding fabric. By ordering pre-finished products, waiving the statutory right to return goods is accepted. We only sell the highest-quality fabrics! Because of the high production costs and a favourable price, small flaws are not grounds for complaint.
