Grounding plate, stationary | grounding of shielded surfaces | indoor rooms and outdoors

Stationary groundingGrounding is an electrically conductive connection with the electric potential of the ground. More plate, for fixed installation for grounding electrically conductive, shielded surfaces by means of shieldingShielding is the protection from the effects of external fault zones and environmental influences (on a person's health most of the time). More paint, shielding fleece or shielding fabric. For indoor or outdoor use depending on the version.

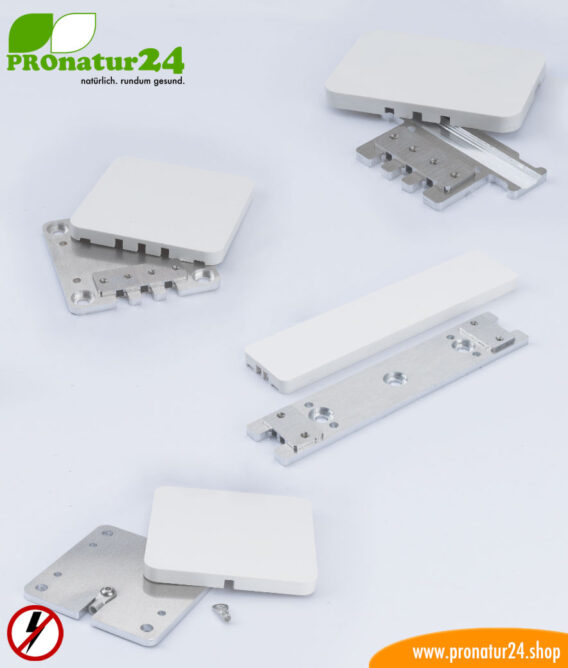

There are several variants of the grounding plates available. The appropriate grounding plate can be chosen depending on where it is being installed – here is an overview:

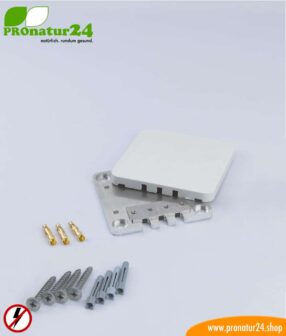

WALL GROUNDING PLATE GW FOR INDOOR ROOMS
Mounted to the wall. The grounding plate is placed next to the socket.

Quadratic version for mounting next to a socket.

One GW wall grounding plate is needed per connected surface.

• Scope of delivery: 75 x 75 x 6 mm grounding plate, 80 x 80 x 8 mm cap, 4 dowels, 4 screws, 3 solder plugs.
• The cable does not come with the delivery. We recommend our readily assembled grounding cable and earthing rods.
• Application: Earth
• Color: White, silver

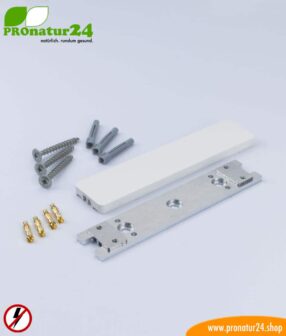

BASEBOARD GROUNDING PLATE GB FOR INDOOR ROOMS
Mounted to the wall. The grounding plate is placed on the baseboard.

Narrow design for mounting on the baseboard.

One GB baseboard grounding plate is needed per connected surface. 4 connection sockets integrated for contact.

• Scope of delivery: 150 x 30 x 6 mm grounding plate, 155 x 35 x 8 mm cap, 3 dowels, 3 screws, 4 solder plugs;
• The cable does not come with the delivery. We recommend our readily assembled grounding cable and earthing rods.
• Application: Earth
• Color: White, silver

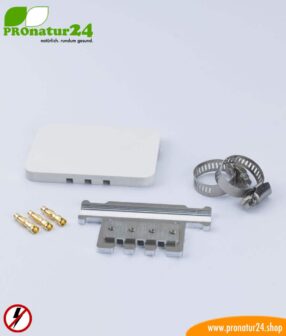

TUBE GROUNDING PLATE GT FOR INDOOR ROOMS
Mounted to grounded installations, such as the heating pipe.

Grounding plate for grounded installations (ex: heating pipes). Stable construction compared to strip earth bands.

3 connection sockets integrated for contact.

• Scope of delivery: 80 x 46 x 6 mm grounding plate, 85 x 60 x 8 mm cap, 2 12 to 25 mm worm-drive clamps, 3 solder plugs;
• The cable does not come with the delivery. We recommend our readily assembled grounding cable and earthing rods.
• Application: Earth
• Color: White, silver

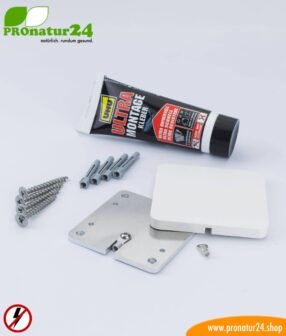

OUTDOOR GROUNDING GT FOR OUTDOOR USE
Mounted to outdoor surfaces and stays watertight.

Grounding plate for shielding paints outdoors. The cap is stuck onto the surface and remains watertight.

Two GE grounding plates are needed per connected surface. 1 connection for cables up to 6 mm².

• Scope of delivery: 75 x 75 x 6 mm grounding plate, 85 x 85 x 8 mm cap, sealant adhesive, 4 screws, 4 dowels, 2 wire lugs;
• The cable does not come with the delivery. We recommend our readily assembled grounding cable and earthing rods.
• Application: Earth
• Color: White, silver
