RDF62 shielding window film | RF shielding attenuation against electrosmog up to 19 dB | Suitable for regions with reduced radio radiation and for indoor rooms.

The RDF62 shieldingShielding is the protection from the effects of external fault zones and environmental influences (on a person's health most of the time). More window film provides a shielding attenuation of up to 19 dB and can therefore only be used sensibly at low loads. Building biology recommendation: Preference for shielding curtains – ALWAYS!

This self-adhesive RDF62 special film is coated in precious metal and suited for protecting from high-frequency electromagnetic radiation caused by mobile radiation from transmitters, mobile phones, smartphones, WLAN, etc. It is typically stuck on the inside of windows without glazing.

We only recommend using it for low exposure because of its low screening attenuation of up to 19 dB. When using the shielding window film, the window frame remains unprotected because the attenuation is weak. Generally, shielding curtains should always be preferred. However, there are uses that make shielding window films useful, such as on windows and doors inside buildings.

This RDF62 shielding film’s light transmission is 62 %. RDF62 has an appropriate ratio of quality, light transmission, light discoloration and good screening attenuation.

RDF62 shielding window film technical information

• Width: 76 cm / 152 cm
• Length: Yard goods, cut in running meters

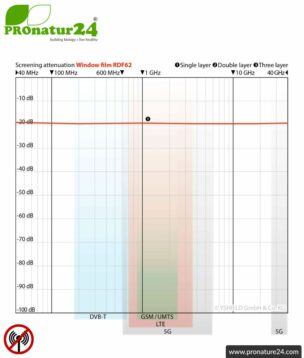

• Screening attenuation: up to 19 dB. All values provided apply for 1 GHz. Measurement from 40/600 MHz to 40 GHz according to standards ASTM D4935-10 or IEEE Std 299-2006.
• Light transmission (transparency): 62 %
• Edge sealing necessary: no
• Color of light (daylight coloration): gray
• Indoor use, mainly on glass but also on doors and other flat surfaces.
• Mounting: Water-activated and pressure-sensitive adhesive on the back.
• Material thickness: 37.5 µm.
• Earth: Not electrically conductive. No protection from electric alternating fields (LF).
• Application: Windows
• Field type: HF (high-frequency electromagnetic fields)
• Ecology: Normal

Only use indoors on glass surfaces WITHOUT GLAZING! Thermal glazing is already metalized. If solar radiation permeates the metallization and then hits the shielding window film, multi-reflection may occur. The window frame heats up needlessly and can thus cause leaks or even cracks by expansion of the frame! Always find out the glass type!

Processing of the HF electrosmog shielding window film

The bubble-free application of the shielding film is not simple and it is recommended to do with another person. First, remove all unevenness and dirt on the glass with a cleansing extract and glass plane. Then, thoroughly clean the glass with window cleaner. Remove the protective film from the shielding film. Distill FMK30 mounting concentrate with 0.5 liter of water! Dilute the water and spray the window surface as well as the adhesive side of the shielding film. Put the window film on the window pane and work from the middle to the outside and remove the air bubbles with the scraper. Detailed instructions come with the film.

Quantity and cancelling the order

If cut in measures of 1.0 running meter according to the customer’s specifications, it is not possible to return or cancel the order. For this reason, it is possible to request a free sample of the shielding film. By ordering pre-finished products, waiving the statutory right to return goods is accepted.

Documentation of the RDF62 shielding window film (.pdf)
