HNG80 shielding netting for use in dry or solid construction. A highly-effective attenuation is possible with this shielding netting against mobile radiations and electrical alternating fields.

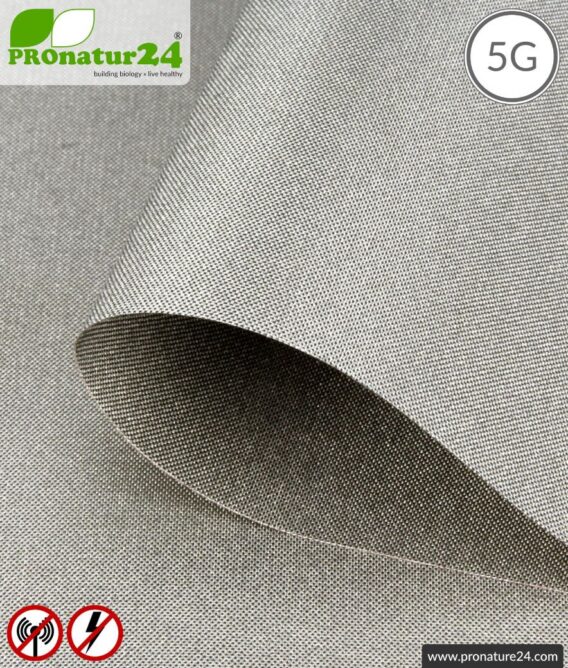

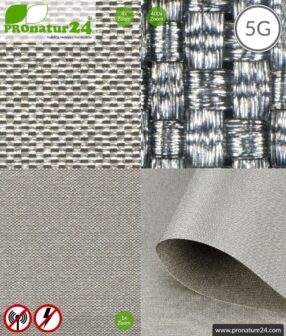

The HNG80 by YSHIELD is a tightly-woven metallic mesh made out of polyester. Developed for effective protection from high-frequency electromagnetic fields (HF) and low-frequency electric fields (LF) from the house supply on large areas. The attenuation of radio (mobile radiation, WLAN, transmission masts…) can go up to 80 dB!
Shielding netting for protection in professional fields
HNG80 can easily be stuck onto walls, ceilings, and floors. It can also be used as a wallpaper. HNG80 is best suited to ministries of defence, low-emission rooms (Tempest), data rooms and laboratories because of its professional screening attenuation.
Shielding netting technical information
- Width: 66 cm / 130 cm
- Length: Yard goods / 20 meter roll / 100 meter roll

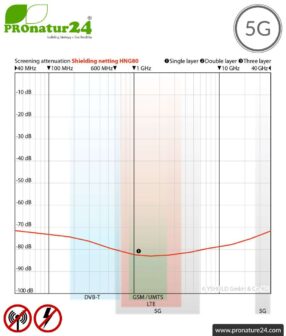

- Shielding effectiveness: 80 dB, 106 dB with two coats. All values provided apply for 1 GHz. Measurement from 40/600 MHz to 40 GHz according to standards ASTM D4935-10 or IEEE Std 299-2006.
- Grammage: 80 g/m²
- Thickness: 0.07 mm
- Color: anthracite-brown
- Tear resistance: Very good in both directions, 220 N/mm
- Materials: Polyester, copper, nickel, protective layer
Earth: Electrically conductive. Can be contacted and grounded to shield against alternating fields (LF)! You can find the corresponding components under “Grounding”. It is difficult to recommend anything because it depends on the usage. Please ask us!
Application: Floors, indoor walls, ceilings
Field type: HF (high-frequency electromagnetic field), LF (low-frequency electric alternating field)
Processing of the shielding netting against electrosmog
If the netting is being used as an intermediate layer, we recommend sticking it onto the surface with the DKL90 dispersion glue. The wall and back of HNG80 need to be coated with a paint roller with DKL90. Stick the wet surfaces together, set them by hand (with disposable gloves) and press together with a rubber pressure roller without causing creasing. Work quickly and strip by strip so that the DKL90 dispersion glue does not dry.
You can only apply the netting crease-free on smooth surfaces! Structured surfaces (wood-chip wallpaper, structural plaster, roller structure of paints) must be smoothed. If this is not possible, we recommend using ou shielding paints as an alternative.
Order quantity, revocation of the order and small quantity surcharge
If the netting has been cut in pieces of 1.0 running meter as requested by the customer, it is not possible to cancel or revoke the order. For this reason, it is possible to request a free sample of the shielding netting. By ordering pre-finished products, waiving the statutory right to return goods is accepted.
Daily business has shown that small quantities can not be financed by the continuously rising costs of packaging and shipping. Therefore, we are forced to introduce a minimum quantity surcharge for small quantities of up to 3 meters with this product. We ask for your understanding.
