Grounding plate, stationary for indoor rooms | grounding of shielded surfaces

GroundingGrounding is an electrically conductive connection with the electric potential of the ground. More plate for stationary fixed mounting of indoor rooms. For grounding electrically conductive, shielded surfaces by means of shieldingShielding is the protection from the effects of external fault zones and environmental influences (on a person's health most of the time). More paint, shielding fabric or shielding fleece.

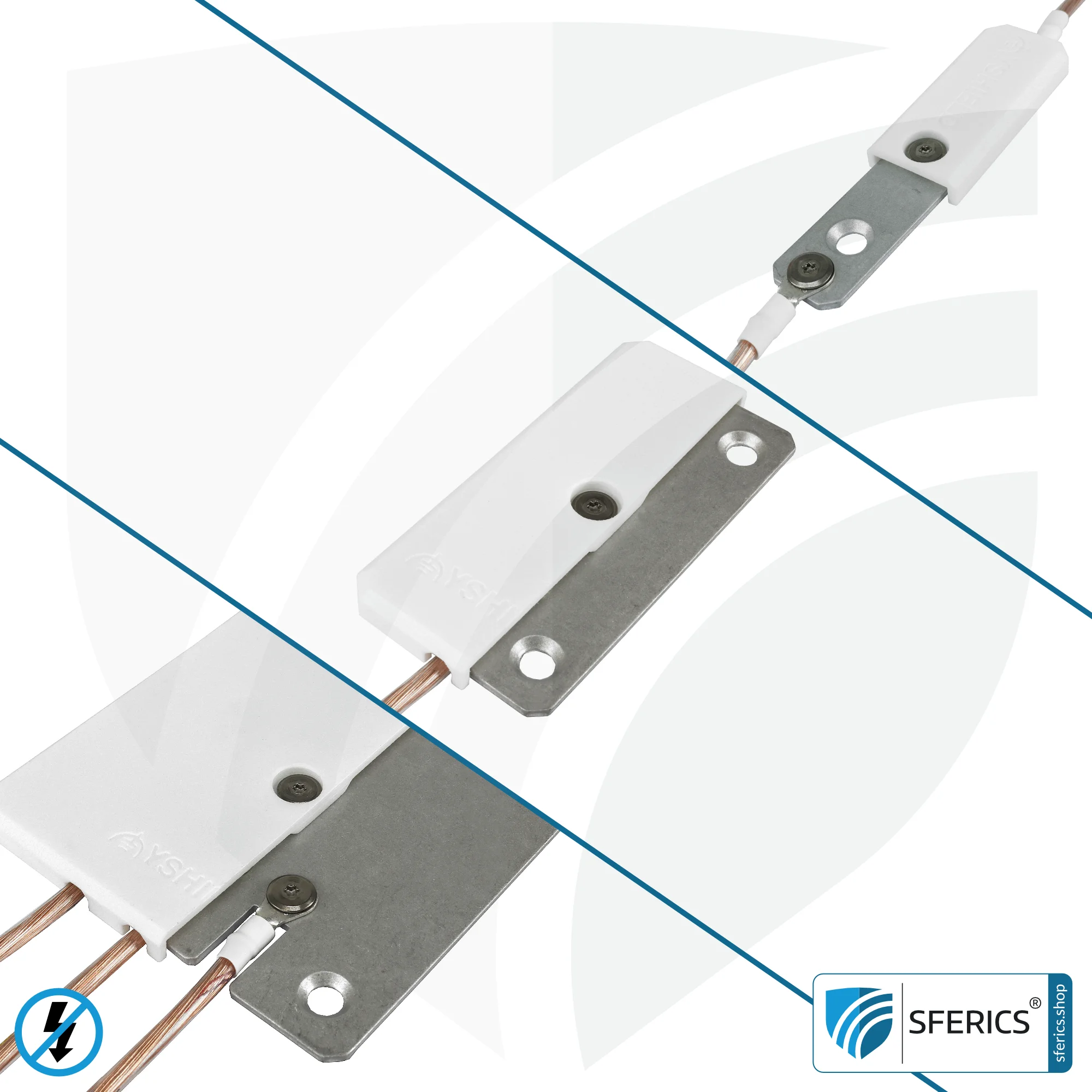

Different variants of earthing plates are available. Depending on the installation location, the appropriate earthing plate can be selected – an overview:

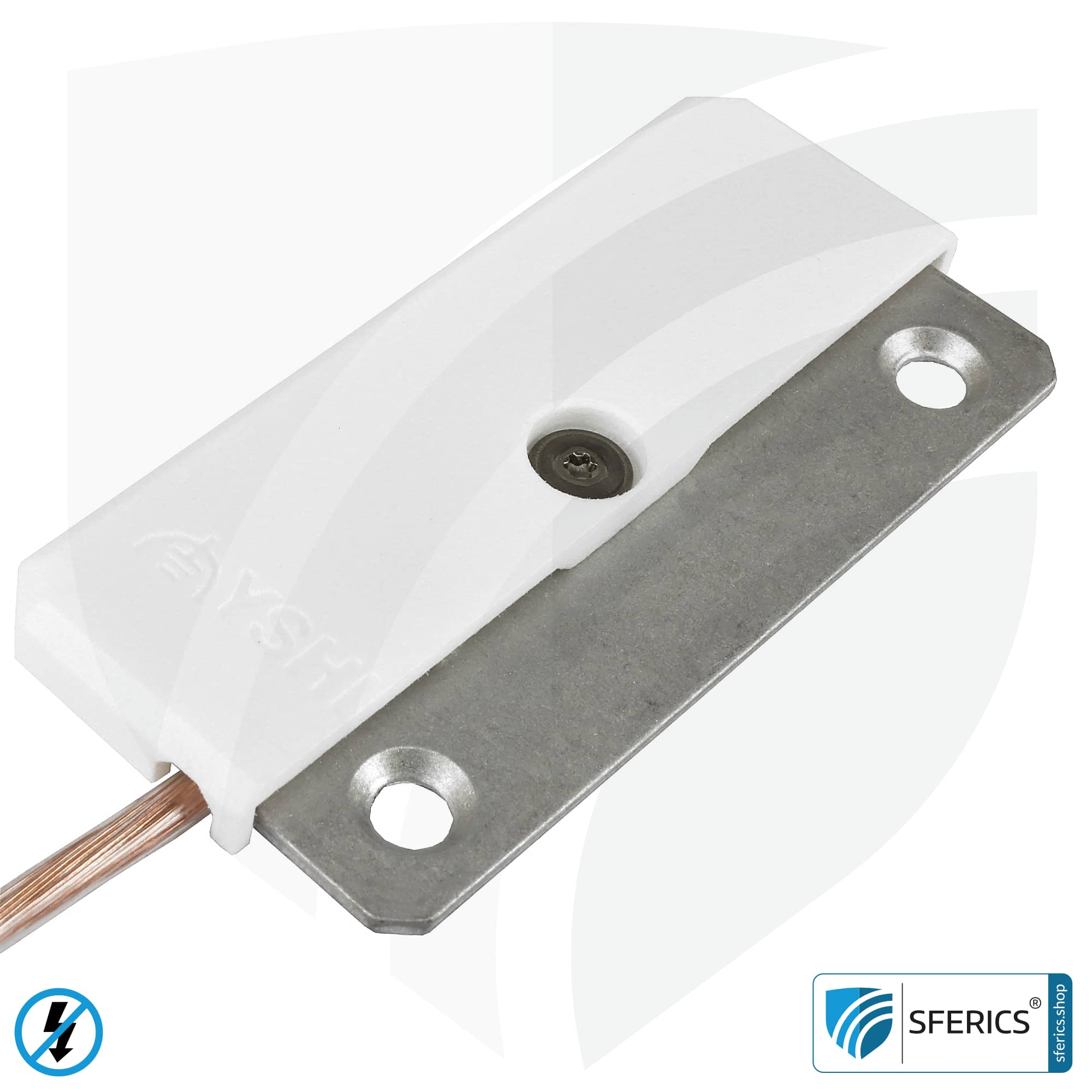

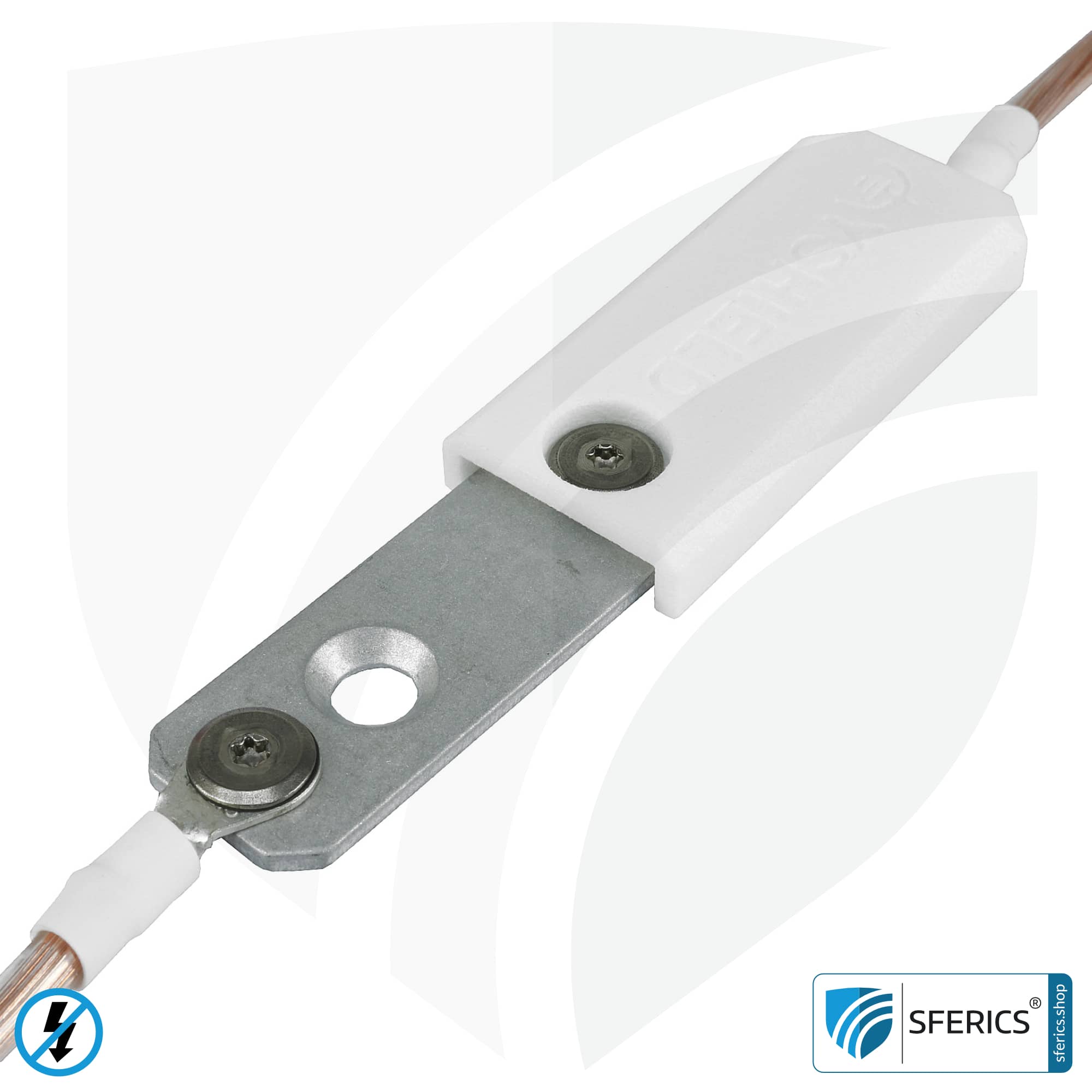

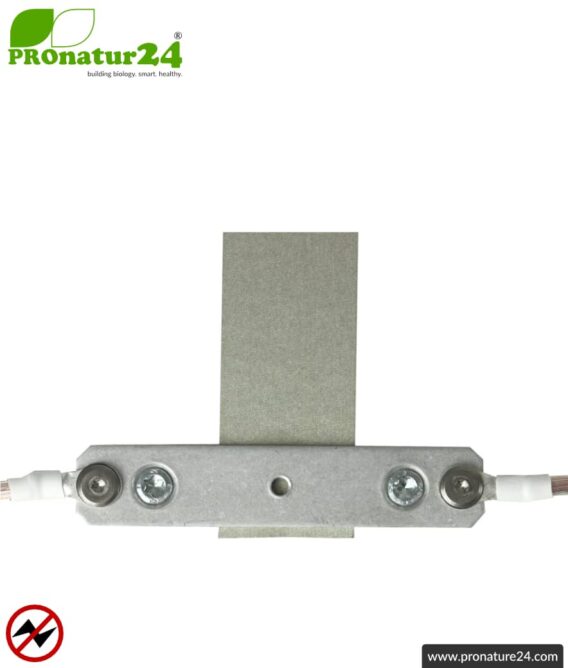

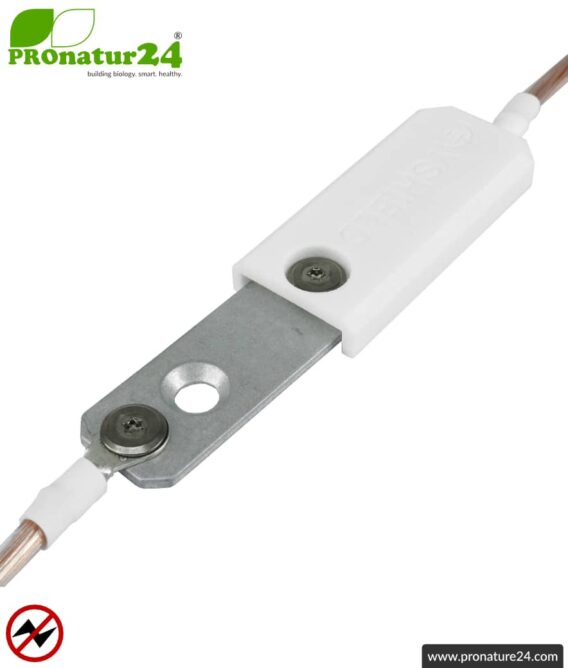

GROUNDING PLATE GS1 with dimension 20 x 80 mm

Small and flat grounding plate 20×80 mm for installation directly on top of shielding products and grounding straps. For the skirting board area. Installation preferably in the baseboard area (due to its small grounding surface) with shielding paint, shielding mesh. Usage only on the interior. One piece per wall is necessary due to the small contact area. Height when completely mounted is only 4 mm (without cover) or 6 mm (including cover).

One grounding plate is required per contiguous surface. 2 cable connections integrated as connectivity.

• Scope of delivery: Aluminium plate 15x75x2 mm, plastic cover 20x80x6 mm, all necessary screws, discs, dowels, cable lugs and a screwing tool with Torx®-Bits. No grounding cable included in  scope of delivery.
• We recommend our ready-made grounding cables GL. If not available in the shop, please enquire.
• Application: grounding
• Colour: silver, white

Download data sheet

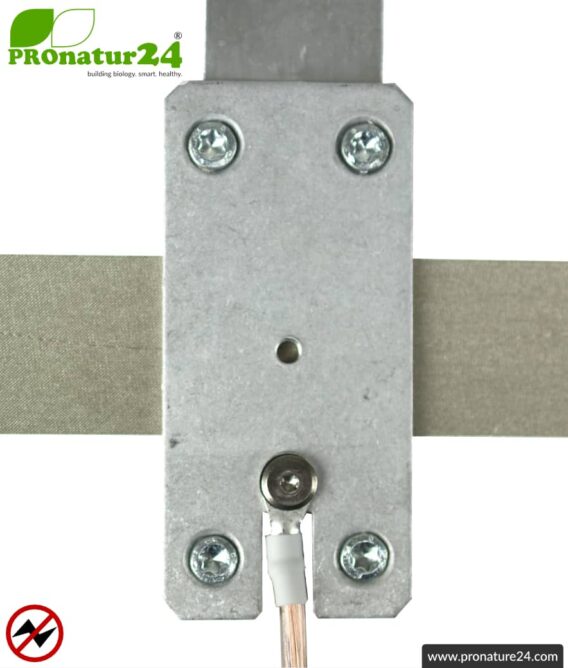

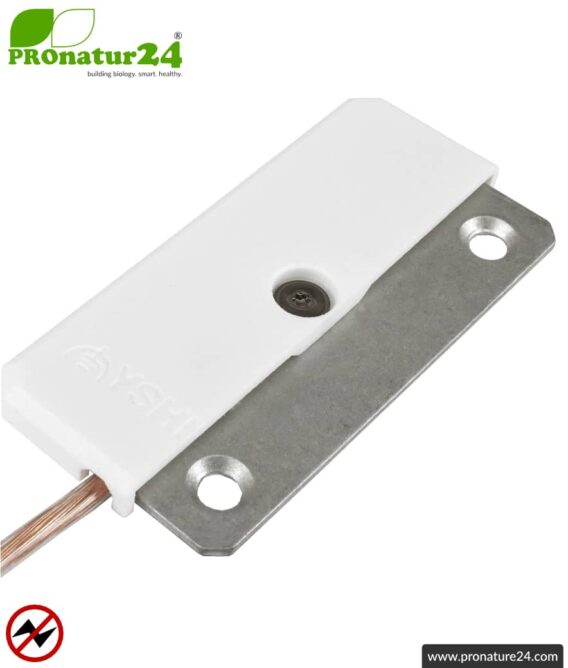

GROUNDING PLATE GS2 with dimension 40 x 80 mm

Small and flat grounding plate 20×80 mm for installation directly on top of shielding products and grounding straps. For the skirting board area. Installation preferably in the baseboard area (due to its small grounding surface) with shielding paint, shielding mesh. Usage only on the interior. One piece per wall is necessary due to the small contact area. Height when completely mounted is only 4 mm (without cover) or 6 mm (including cover).

One grounding plate is required per contiguous surface. 1 cable connection integrated as connectivity.

• Scope of delivery: Aluminium plate 35x75x2 mm, plastic cover 20x80x6 mm, all necessary screws, discs, dowels, cable lugs and a screwing tool with Torx®-Bits. No grounding cable included in  scope of delivery.
• We recommend our ready-made grounding cables GL. If not available in the shop, please enquire.
• Application: grounding
• Colour: silver, white

Download data sheet

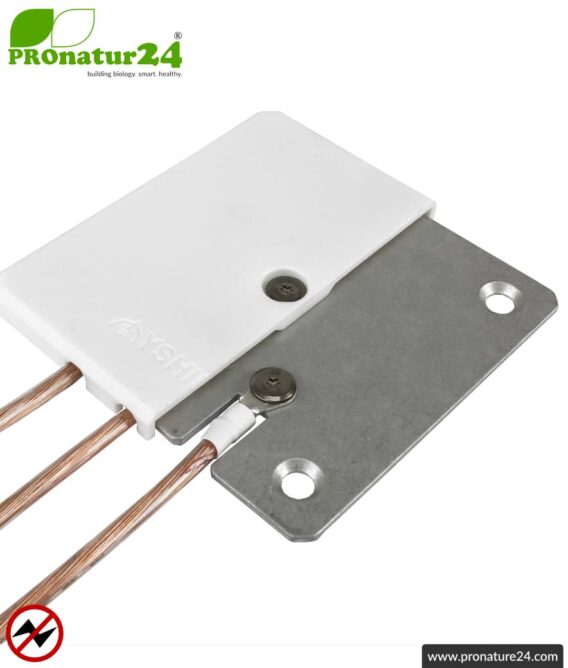

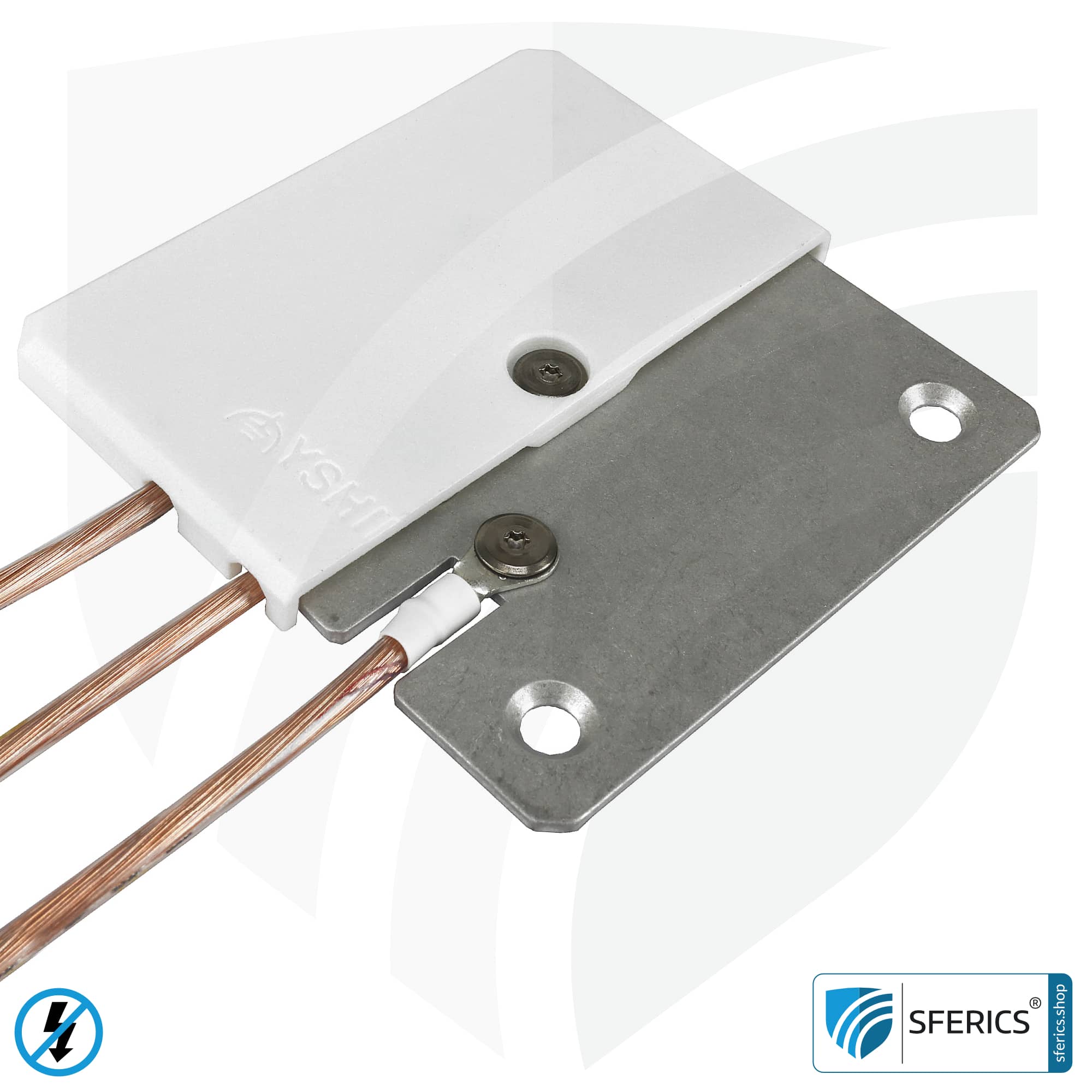

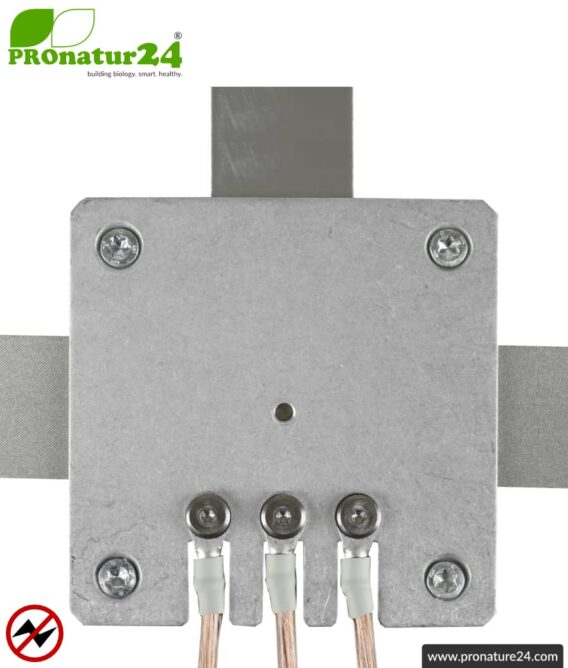

GROUNDING PLATE GS3 with dimension 80 x 80 mm

Small and flat grounding plate 80×80 mm for installation directly on top of shielding products and grounding straps. For the skirting board area. Installation preferably in the baseboard area (due to its small grounding surface) with shielding paint, shielding mesh. Usage only on the interior. One piece per wall is necessary due to the small contact area. Height when completely mounted is only 4 mm (without cover) or 6 mm (including cover).

One grounding plate is required per contiguous surface. 3 cable connections integrated as connectivity.

• Scope of delivery: Aluminium plate 75x75x2 mm, plastic cover 20x80x6 mm, all necessary screws, discs, dowels, cable lugs and a screwing tool with Torx®-Bits. No grounding cable included in  scope of delivery.
• We recommend our ready-made grounding cables GL. If not available in the shop, please enquire.
• Application: grounding
• Colour: silver, white

Download data sheet
