Grounding housing, stationary | grounding of shielded surfaces | indoors and outdoors

Grounding house, for fixed mounting for grounding electrically conductive, shielded surfaces by means of shielding paint, shielding fleece or shielding fabric. For indoor or outdoor use, depending on the version.

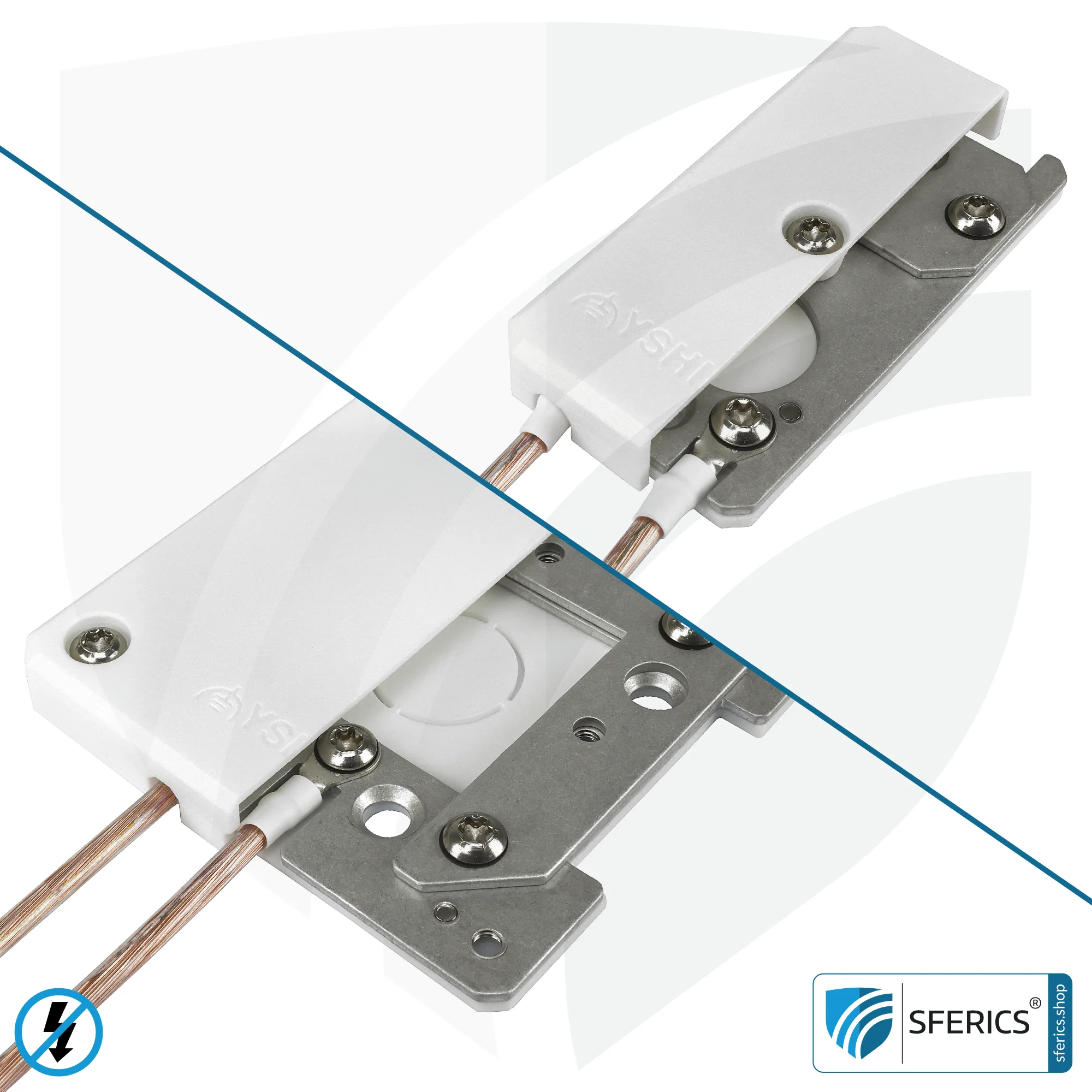

Three different variants of groundingGrounding is an electrically conductive connection with the electric potential of the ground. More plates are available. Depending on the installation location, the appropriate grounding plate can be selected – an overview:

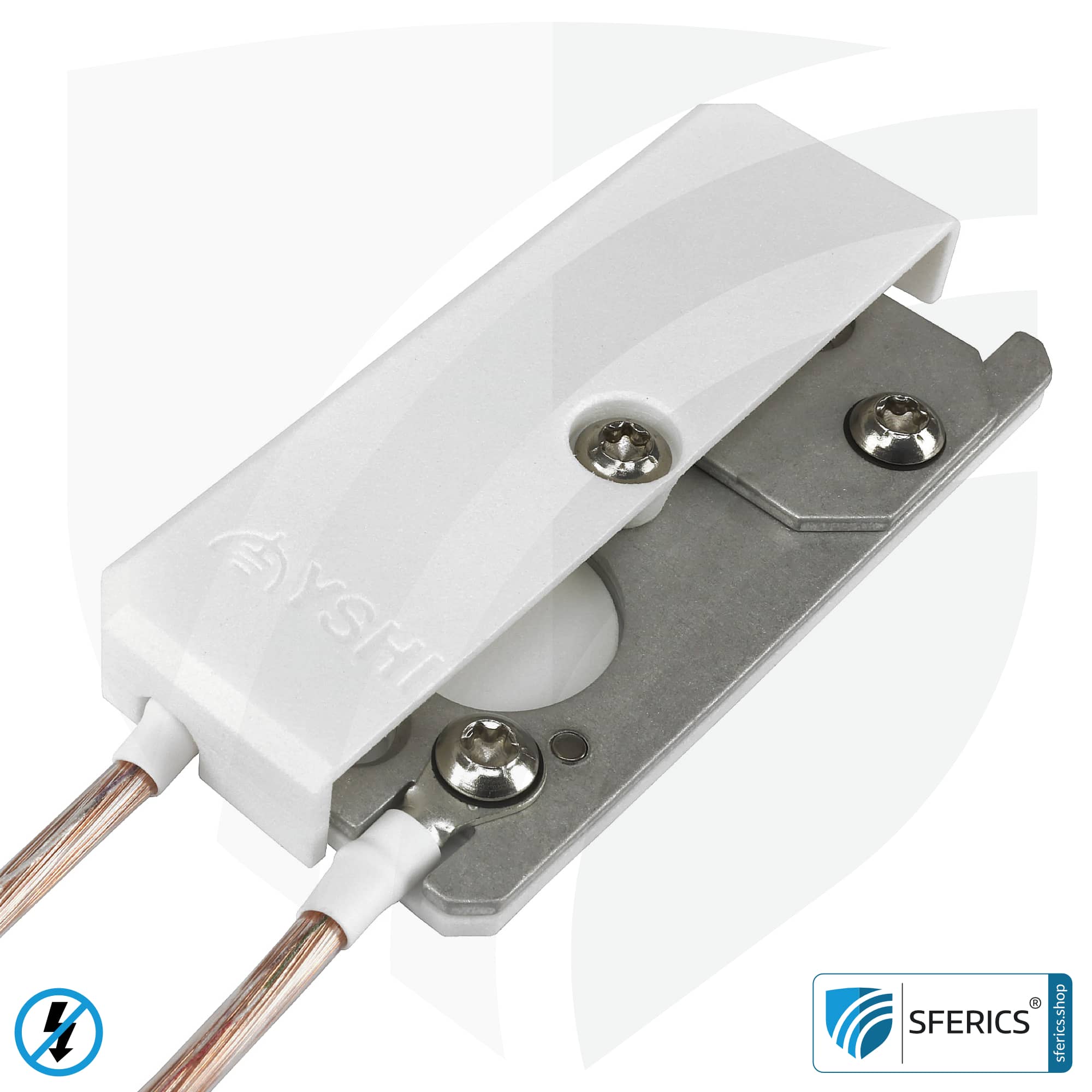

GROUNDING HOUSE, 40x80mm

Medium surface-mounted and flush-mounted enclosure 40x80mm for mounting directly on shieldingShielding is the protection from the effects of external fault zones and environmental influences (on a person's health most of the time). More products or for clamping grounding straps.

Medium surface-mounted or flush-mounted enclosure in the size of 40x80mm. Suitable for mounting directly on shielding products or for clamping grounding tapes. With a clamping point for grounding straps is the recommendation for small areas with shielding paint, shielding fabric, shielding plaster, reinforcing fabric.

Suitable for use indoors as well as outdoors, but additional sealing is required here. One piece of the housing is required per shielded area. Note for flush mounting: with a height of 11 mm, this grounding enclosure is thinner than a drywall panel.

• Connectivity: 1 terminal point, 2 cable connections
• Scope of delivery: aluminium plate 35x75x2 mm, plastic cover 40x80x11 mm, 20 cm grounding strap, all necessary screws, washers, dowels, cable lugs and a screw tool with Torx® bits.
• No cable included in the scope of delivery.
• For grounding, an additional grounding cable is required. Suitable ready-made grounding cables GL in various lengths are conveniently available in the shop.

Documentation for download (.pdf)

Technical details Technical data sheet grounding

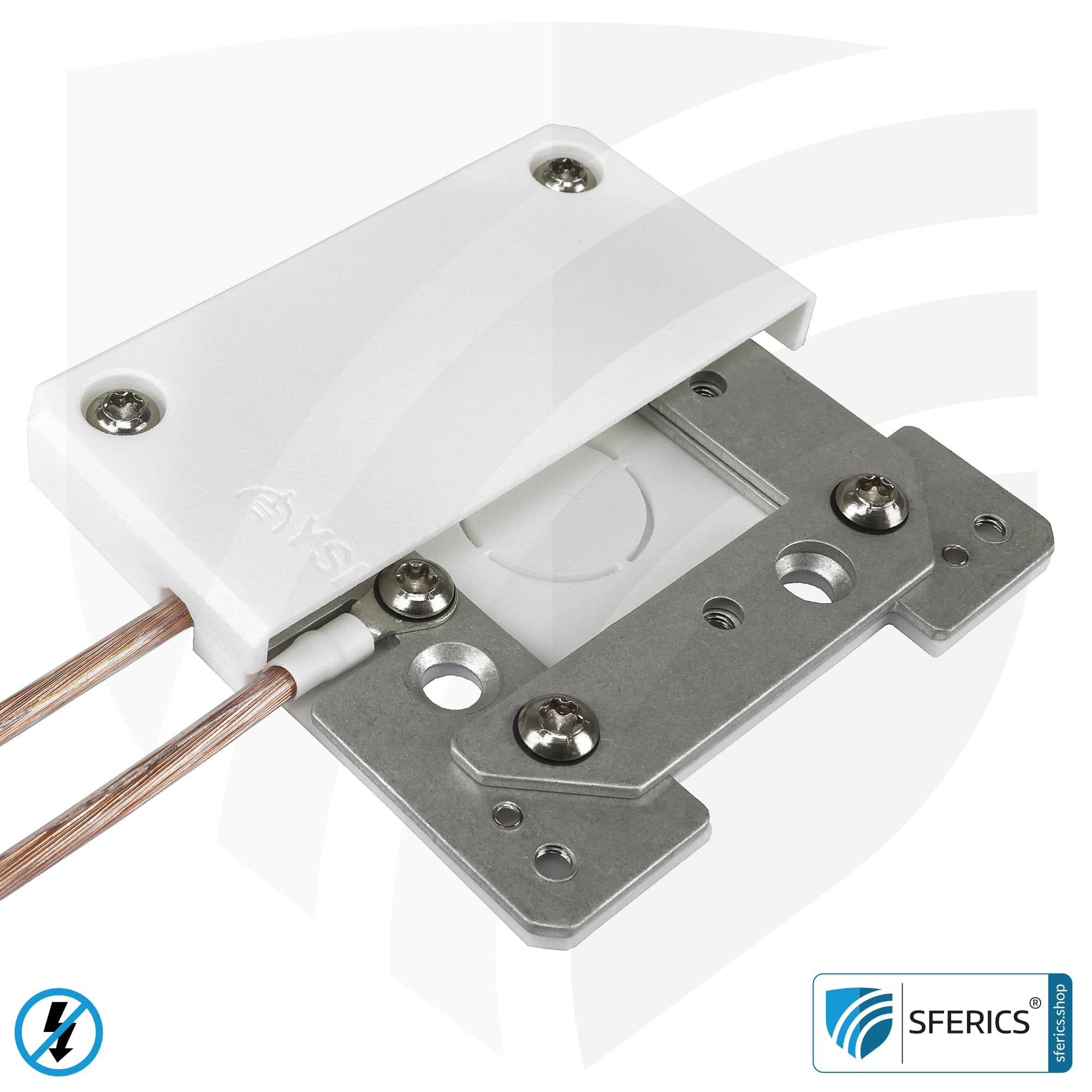

GROUNDING HOUSE, 80x80mm

Medium surface-mounted and flush-mounted enclosure 80x80mm for mounting directly on shielding products or for clamping grounding straps.

Standard surface-mounted or flush-mounted enclosure in the size of 80x80mm. Suitable for mounting directly on shielding products or for clamping grounding straps. With three clamping points for grounding tapes is the recommendation for all surfaces with shielding paint, shielding fabric, shielding plaster, reinforcing fabric.

Suitable for use indoors as well as outdoors, but additional sealing is required here. One piece of the enclosure is required per shielded area. Note for flush mounting: with a height of 11 mm, this grounding enclosure is thinner than a drywall panel.

• Connectivity: 3 clamping points, 2 cable connections.
• Scope of delivery: aluminium plate 75x75x2mm, plastic cover 80x80x11mm, 20 cm grounding strap, all necessary screws, washers, dowels, cable lugs and a screw tool with Torx® bits.
• No cable included in the scope of delivery.
• For grounding, an additional grounding cable is required. Suitable ready-made grounding cables GL in various lengths are conveniently available in the shop.

Documentation for download (.pdf)

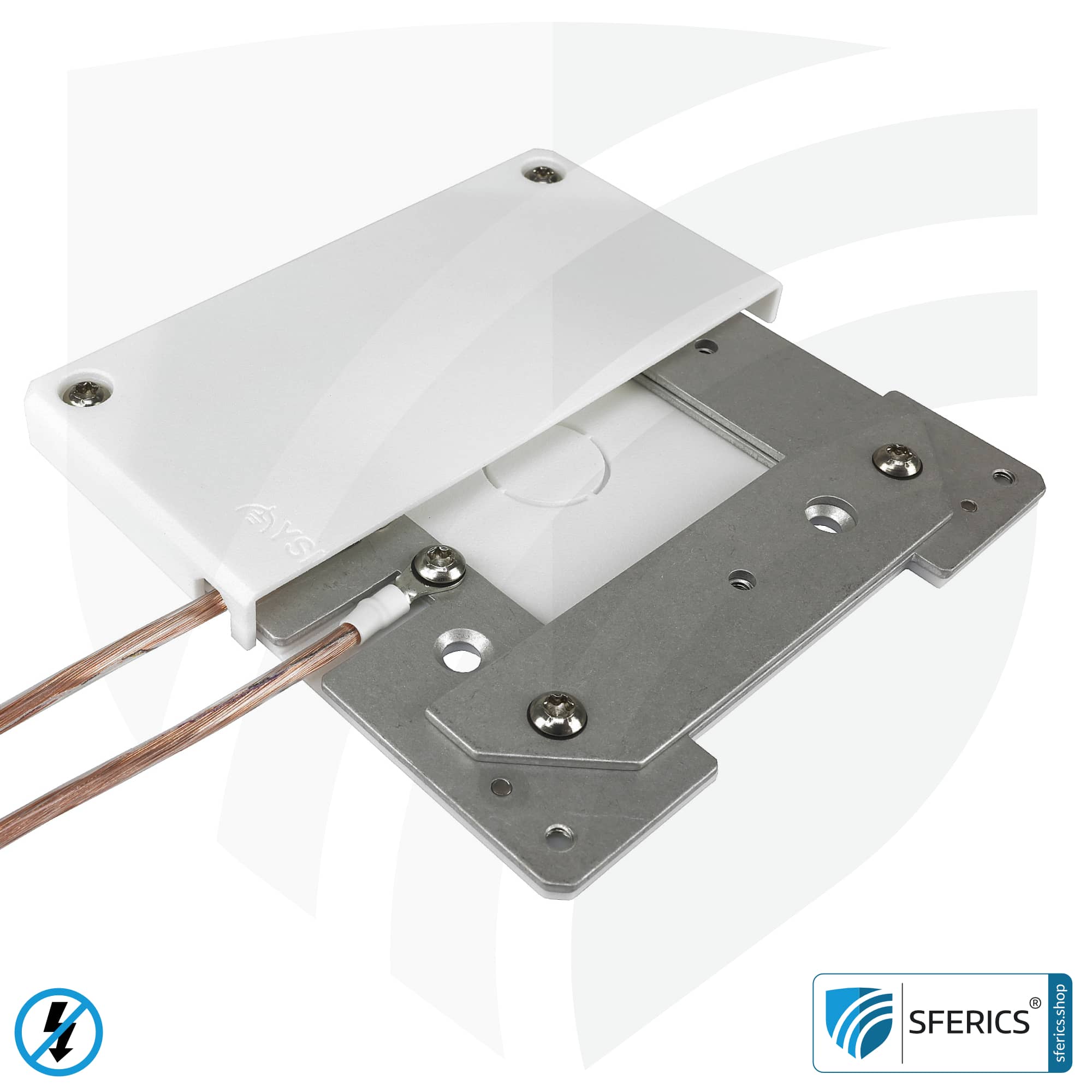

GROUNDING HOUSE, 120x120mm

Large surface-mounted and flush-mounted housing 120x120mm for mounting directly on shielding products or for clamping grounding straps.

Large surface-mounted or flush-mounted housing in the size of 120x120mm. Due to the large surface area, preferred for use in façade and roof areas. With three clamping points for grounding tapes is recommended for all surfaces with shielding paint, shielding fabric, shielding plaster, reinforcing fabric.

Suitable for use indoors as well as outdoors, but additional sealing is required here. One piece of the enclosure is required per shielded area. Note for flush mounting: with a height of 11 mm, this grounding enclosure is thinner than a drywall panel.

• Connectivity: 3 clamping points, 2 cable connections.
• Scope of delivery: aluminium plate 115x115x2 mm, plastic cover 120x120x11mm, sealing adhesive UHU, 20 cm grounding tape, all necessary screws, washers, dowels, cable lugs and a screw tool with Torx® bits.
• No cable included in the scope of delivery.
• For grounding, an additional grounding cable is required. Suitable ready-made grounding cables GL in various lengths are conveniently available in the shop.

Documentation for download (.pdf)
