Shielded cavity wall box | luminaire outlet | 45mm depth

13.20

Made in Germany

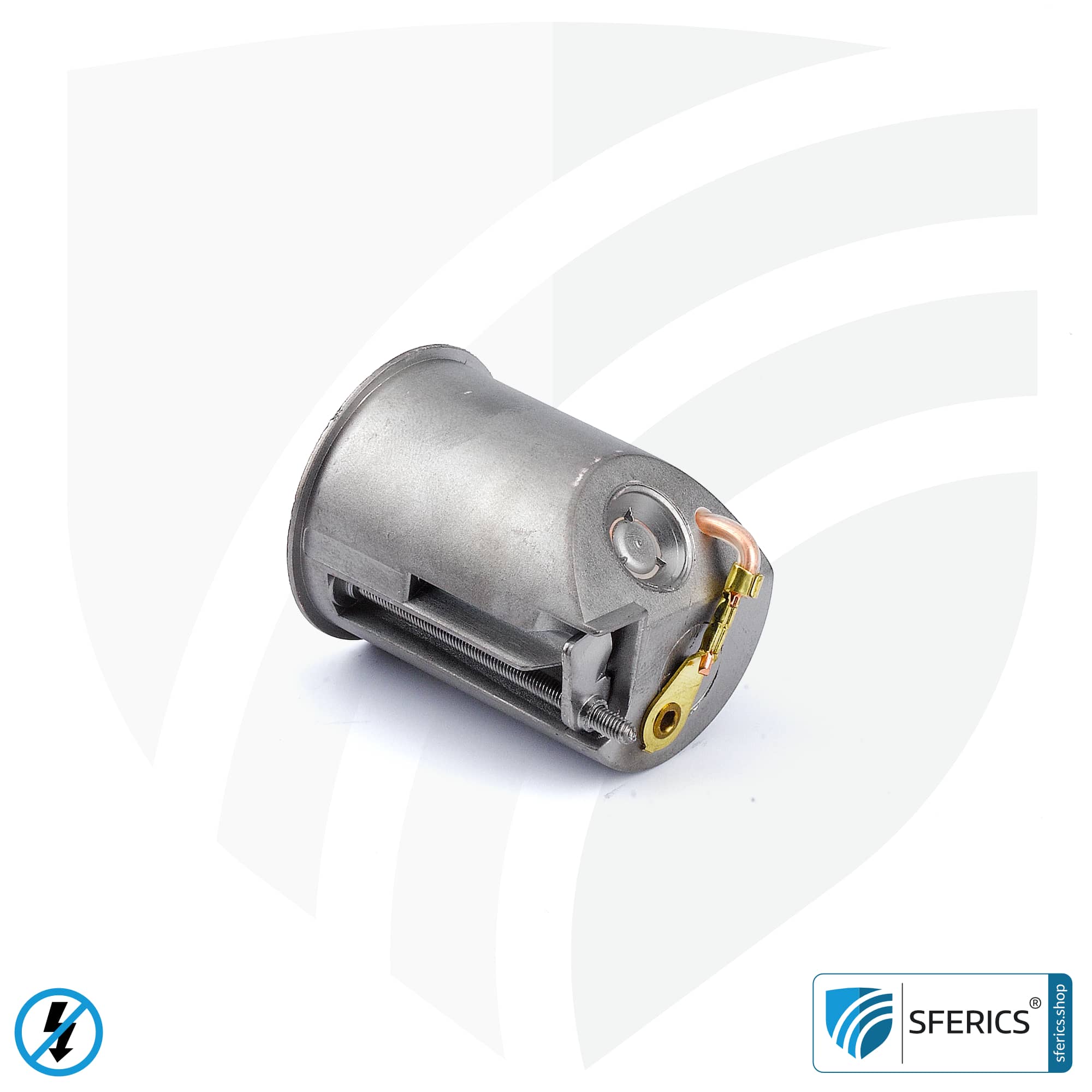

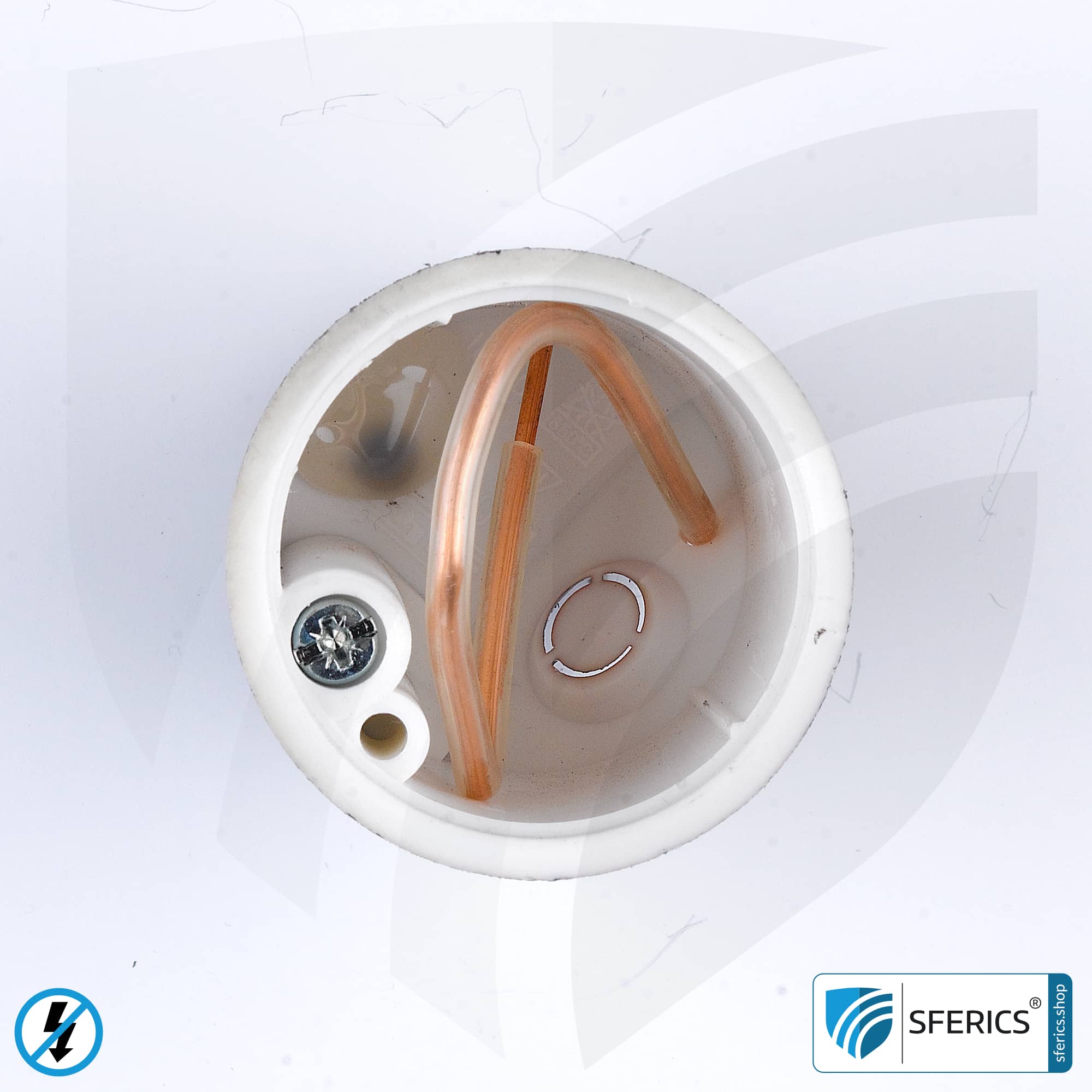

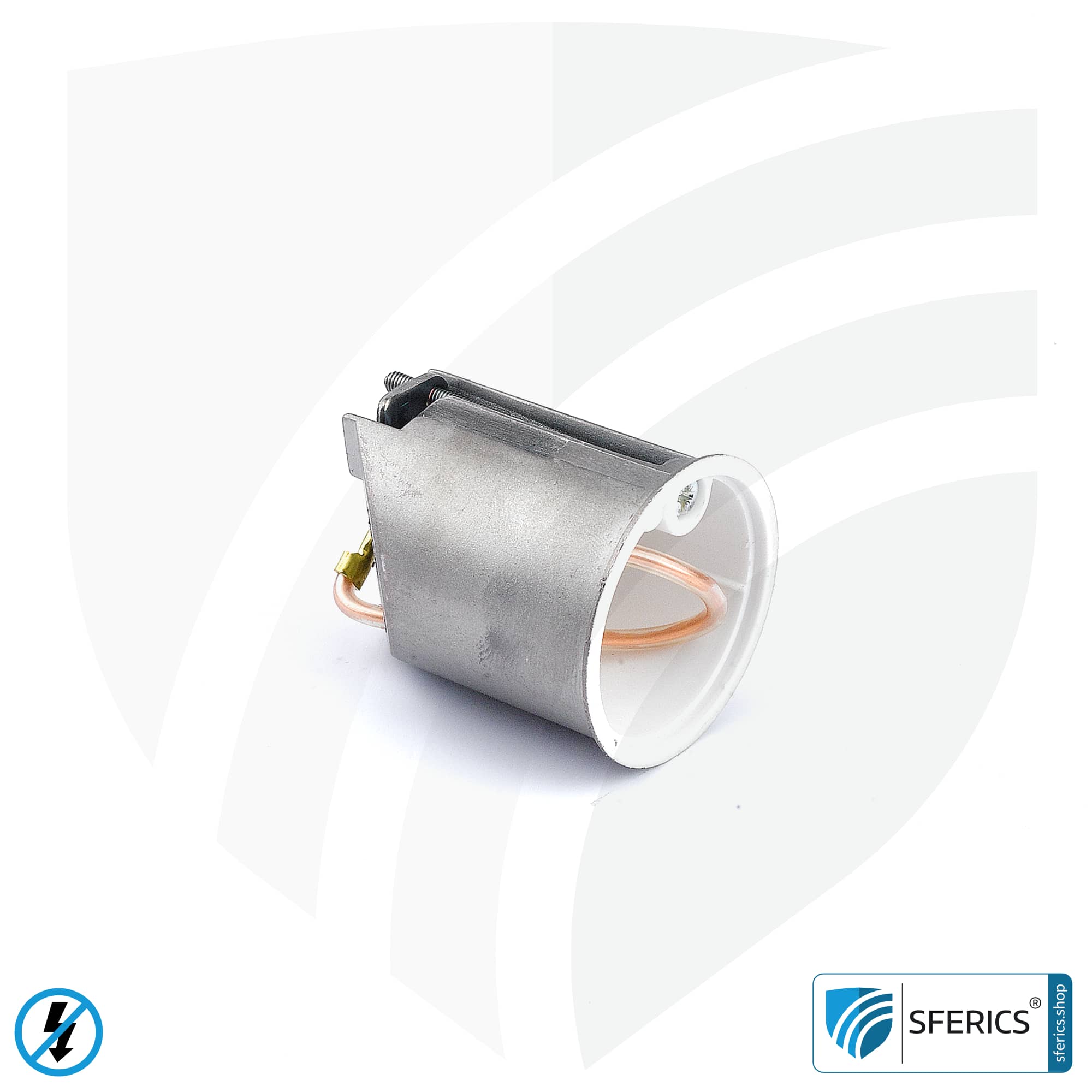

Shielded cavity-wall light connection box. Depth 45 mm.

Delivery time: approx. 1-3 working days

Savings on bigger quantities
from 10 pieces from 20 pieces from 50 pieces from 100 pieces
€12.80 €12.67 €12.54 €12.41

In stock

Installation of the socket, ideally in a shielded junction box

Shielded cavity wall box with 45mm depth. Luminaire outlet for installing shielded electrical cables for lighting in drywall construction. Ideal for the electrosmog LF shielded room according to Faraday to reduce electrical fields.

This shielded junction box is used to reduce low-frequency alternating fields. This is an ideal addition to a wall shielded by shielding paint to also close the “socket hole” in the Faraday cage as best as possible.

Shielded with metal vacuum coating. Potential connection 1.5 mm² rigid. Usable for junction and switch boxes for plate thickness of 7-35 mm. Standard mounting distances.

General information about the cavity-wall light connection box

The coating of the flush-mounted or cavity-wall boxes is electrically conductive and are perfectly suited to fully limiting alternating fields. The focus of this shielded installation box is its use in the bedroom, hospitals, computer rooms, and other sensitive areas to limit alternating fields.

  • Special conductive metal vacuum coating for shielding against electrical alternating fields (in accordance with the EU’s 2002/95/EG guidelines)
  • Approved screw spacing
  • Connecting wire 1.5mm² (Copper, massive, rigid, transparent insulation), quick installation in
  • Plug terminals (push-wire connectors)
  • Installation of the insertions with screws and stretches
  • Standard screw spacing of 60mm

Details about the use of the shielded cavity-wall box

Can be used for a plate with a thickness of 7 to 35 mm, several breakout openings, pre-mounted device screws, snap-lock spacer, polypropylene (halogen-free).

Made in Germany

Documentation for building biological electrical installations in construction

Technical data Connecting and grounding shielded cables and boxes
Weight 0.05 kg
Dimensions 6.7 × 6.7 × 4.7 cm
Scope of delivery

Cavity-wall box

Brand

Country of origin

Germany

GTIN

4260004784603
